Wenzhou Manufacture electric flange actuator ball valve

FOB Reference Price:Get Latest Price
$120.00 - $1,000.00 / Set | 10 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 11 - 500 >500
Est. Time(days) 5 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
tuoerpu
Model Number:
Top -1100
Material:
Stainless Steel
Application:
General, water treatment ,petroleum etc
Pressure:
Medium Pressure
Power:
electric
Temperature of Media:
Medium Temperature
Structure:
Ball
Media:
water ,acid ,gas ,oil etc.
Port Size:
Standard
Standard or Nonstandard:
Standard
valve body material:
WCB ,304,316
Seat Material:
PTFE,PPL,Metal seal
Certificate:
iso 9001 :2008 , CE approved actuator
Size:
1/2"~10"
Valve Structure:
Ball Valve
Ball Rotation Angle:
90 °
Connection End:
Flange
Valve Packing::
Plywood Case
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Package of mini electric actuator : Polybag - Polyfoam - Carton - Plywood Case/Customer Requirements
Port
Ningbo/Shanghai
Lead Time :
Quantity(Sets) 1 - 10 11 - 500 >500
Est. Time(days) 5 25 To be negotiated
Video Description
Product Description
Nominal Diameter DN (mm)
DN15-DN250
Nominal  Pressure
PN1.0/1.6/2.5/4.0/6.4MPa
Applicable Media
water ,petroleum,Nitric acid,Acetic acid ,viscous liquid ,Slurry, strong oxidizing media etc
Applicable Temperature
-40℃~+8℃ (PTEE/PPL SEAL ) -40℃~+350℃ (Metal Seal )
Leakage  Rate
accord with ANSI B16 104 Standard
Ball Rotation Angle
90 °
Body Material
WCB,304,316
Seat Material
PITE  (Nomal Temperature ) ,Special PPL ( High Temperature ) ,Metal Seal ( High Temperature )

product overview :

Electric flanged ball valves is an Angle of 90 degrees of rotation type ball valve, which is in good seal performance, big flow capacity , small flow resistance coefficient, simple structure, convenient maintenance and  long usage life,.Valve body channel and linked pipe diameters are equal to one diameter., medium can be almost no losses while passing, with TOP actuator, products are usually used in strict sealing occasions, in addition to the control of gas, liquid, steam medium, also suitable for control of water medium containing fiber impurities, widely used in petroleum, chemical industry, metallurgy, light industry, papermaking, power plant, refrigeration, etc. Work areas

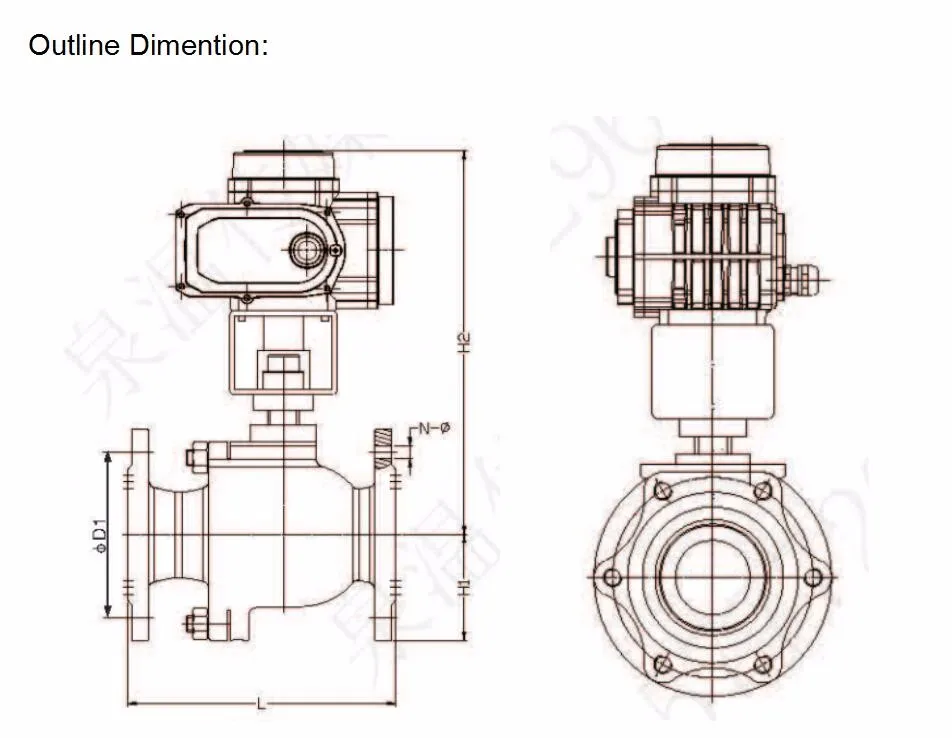

Detailed Images

Characteristics :

1.Small fluid resistance, the ball valve is one of the least fluid resistance in all valve types, even the reducing ball valve, its fluid resistance is quite small.

2.The thrust shaft bearing reduces the friction torque of the stem, which can make the stem long operation balance flexible.

3.The seat sealing performance is good, the sealing ring is made of PTFE , the structure is easy to seal, and the sealing ability of ball valve increases with the increase of medium pressure

4.The stem seal is reliable, because the stem only makes rotary motion without lifting movement, the packing seal of stem is not easy to damage, and the sealing ability increases with the pressure of medium .

5.Because of the good self-lubrication of PTFE, the friction loss of the ball is smaller and the service life of ball valve is longer.
